Application
| Wider field of view. Ideal for cell counting, opaque subjects and subjects larger than 1mm. |
Specifications
| Magnification | x150 Field of view 2mm fixed width |
| Working distance | 2.5mm from lens to sample |
| Illumination | Adjustable top and bottom illumination |
| Sample stage | Glass |
| Display |
Smart phone, tablet or computer with WiFi
Direct connection, no WiFi infrastructure or router is required (internet is not required)
|
| Image sharing |
On a smartphone or tablet, images and videos are stored in the gallery / camera roll for easy sharing.
On a computer, images and videos are stored in the web browser’s downloads folder.
|
| ioLight App | Free for download from the Apple® or Google Play® app store |
| Image format | 5MP (2592 x 1944 pixels); JPEG; colour |
| Video format | MPEG-4; colour; up to 1296 x 972; 10 fps |
| Folded Dimensions | 160mm x 101mm x 32mm |
| Operating Dimensions | 160mm x 101mm x 107mm |
| Weight | 440g with neoprene case |
| Power supply | Integrated Li-ion rechargeable battery USB charger (supplied) |
Requirements
|
A tablet or phone running iOS 8.1 or Android® 4.4 or higher, or a computer with WiFi and Google Chrome (or another web browser)
We recommend newer, faster devices. Older low-performance devices may run the app, but this is not guaranteed
|
What’s in the box?

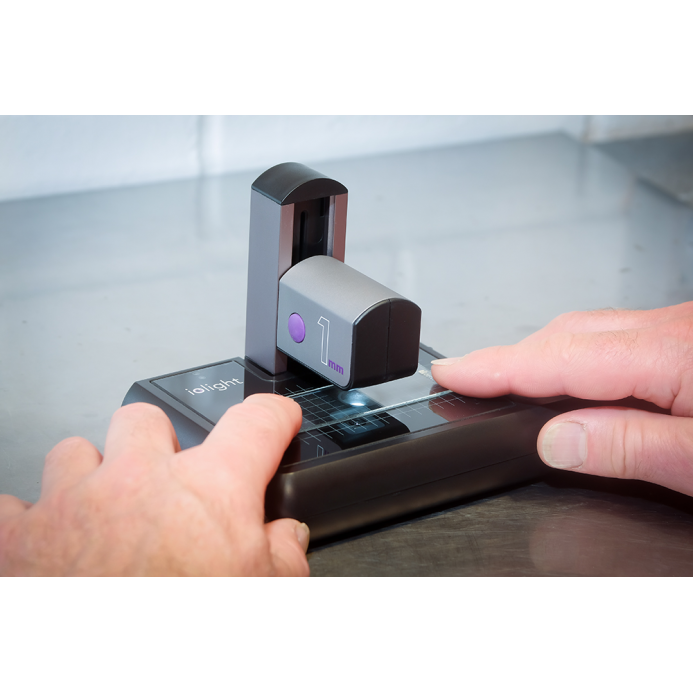

| Your ioLight Magnificent Mobile Microscope |
| USB charger, international model |
| Protective pouch |
| Users’ guide and certificate of conformity |
