Application
| Veterinary Worm Egg Counting |
| Counting of algae and other samples |
| Easy positioning of the sample |
| Methodically scanning of slides and counting chambers |
| Works with standard microscope slides and counting chambers (25x75mm or 1”x2”) and with 32mm wide counting chambers |
| Allows manual movement of the slide and counting chamber independently in the left-right (X) axis and front-back (Y) axis |
Specifications
| Magnification | x150 Field of view 2mm fixed width |
| Working distance | 2.5mm from lens to sample |
| Slide or counting chamber |
Supplied with carriages for either 25mmx75mm, 1”x3” slides or counting chambers and 32mmx75mm/3” counting chambers.
Can be used without the carriage, in the same way as the standard 1mm and 2mm microscopes
|
| Illumination | Adjustable top and bottom illumination |
| Sample stage | Stainless steel |

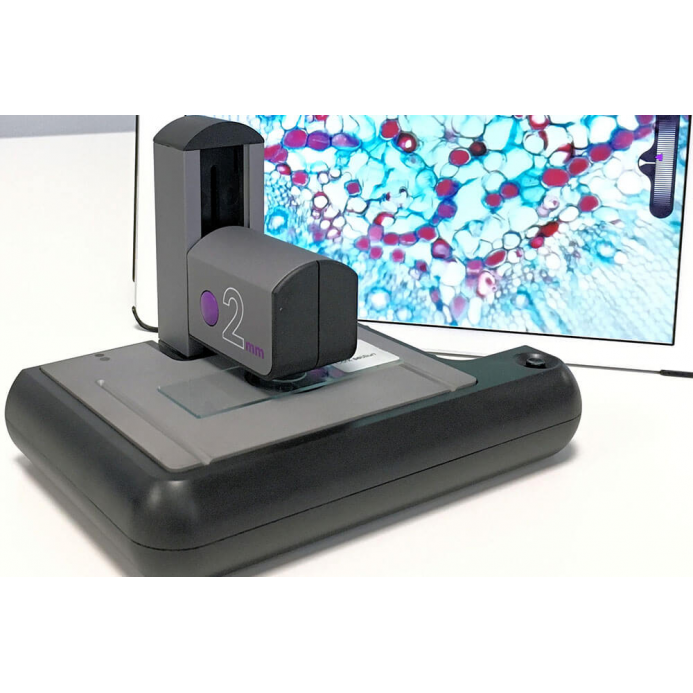

| Display |
Smart phone, tablet or computer with WiFi
Direct connection, no WiFi infrastructure or router is required (internet is not required)
|
| Image sharing |
On a smartphone or tablet, images and videos are stored in the gallery / camera roll for easy sharing.
On a computer, images and videos are stored in the web browser’s downloads folder.
|
| ioLight App | Free for download from the Apple® or Google Play® app store |
| Image format | 5MP (2592 x 1944 pixels); JPEG; colour |
| Video format | MPEG-4; colour; up to 1296 x 972; 10 fps |
| Folded Dimensions | 160mm x 101mm x 37mm with carriage |
| Operating Dimensions | 160mm x 101mm x 107mm |
| Weight | 600g with 1 carriage and protective pouch |
| Power supply | Integrated Li-ion rechargeable battery USB charger (supplied) |
Requirements
|
A tablet or phone running iOS 8.1 or Android® 4.4 or higher, or a computer with WiFi and Google Chrome (or another web browser)
We recommend newer, faster devices. Older low-performance devices may run the app, but this is not guaranteed
|
What’s in the box?

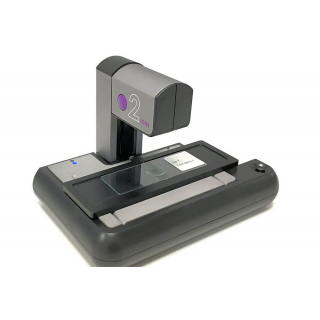

| Your ioLight Magnificent Mobile Microscope |
| Supplied with carriages for both 25mmx75mm, 1”x3” slides and counting chambers and 32mmx75mm/3” counting chambers |
| Carriage for 32mm wide counting chambers |
| USB charger, international model |
| Protective pouch |
| Users’ guide and certificate of conformity |
