Application
|

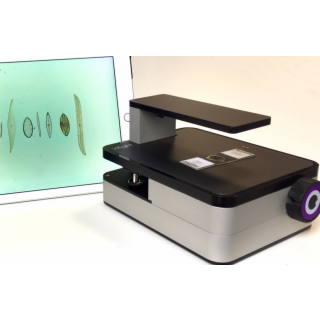

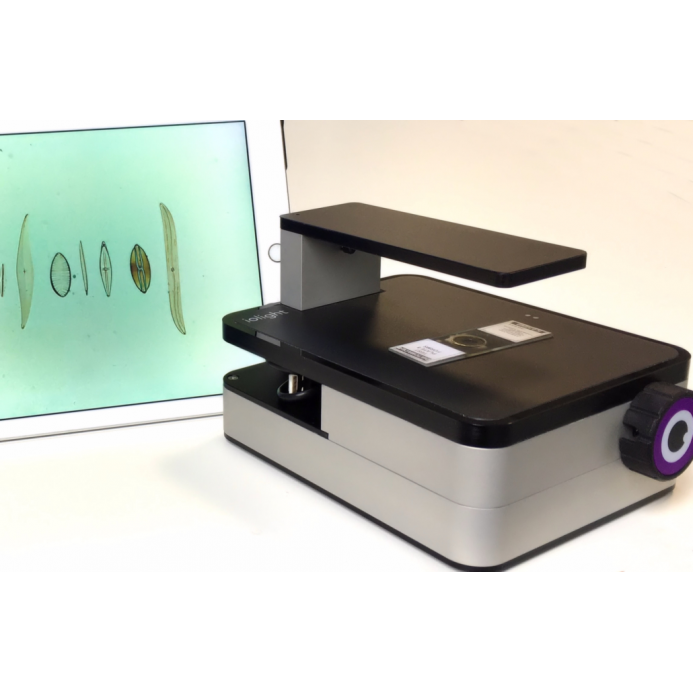

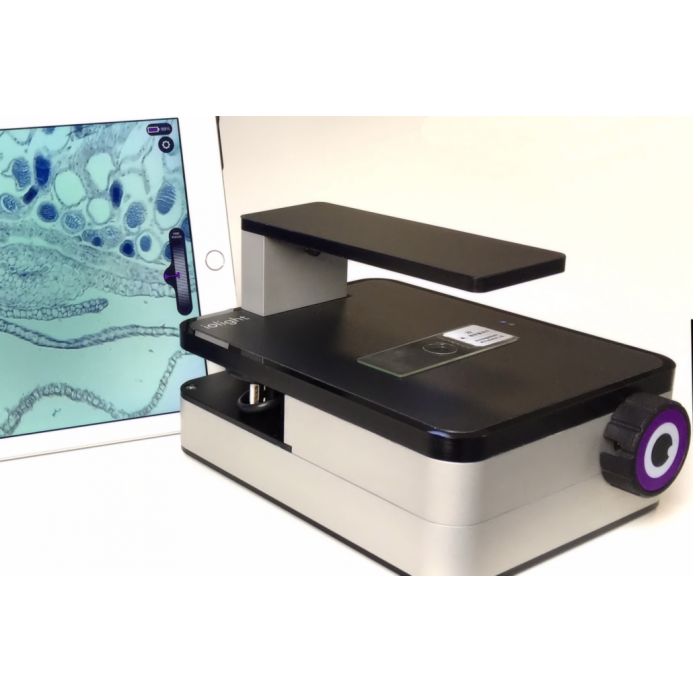

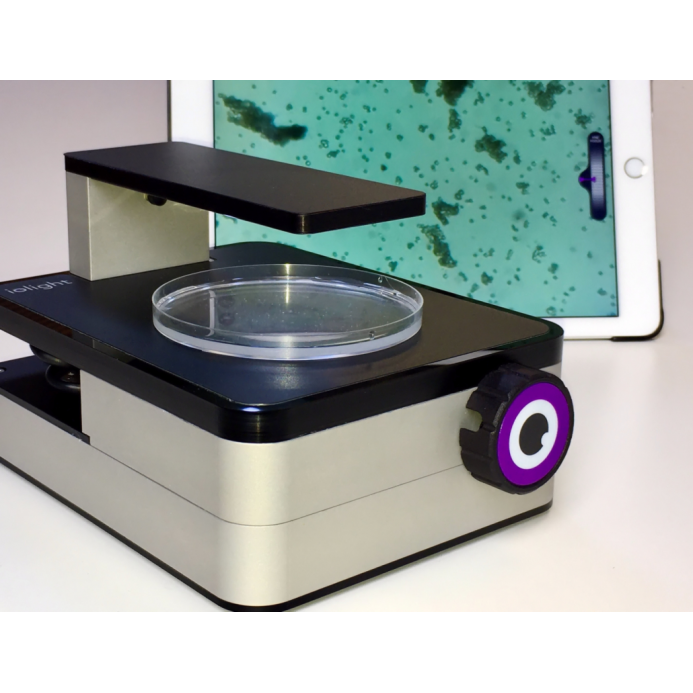

Viewing transparent samples from below in a Petri dish, flask, well plate or cavity slide. The microscope is compact and can be put inside most incubators to view experiments without opening the door. Time-lapse images can be saved and viewed remotely.
Ideal for use as a Bench Microscope in teaching applications.
|
Specifications
| Magnification |
x400
Field of view approx. 1mm, resolution 1µm
|
| Sample container | Petri dish, flask, well plate or cavity side with clear transparent base and lid. |
| Maximum focal length | 6mm stage to sample |
| Maximum sample (flask) height | 40mm |
| Illumination |
Adjustable top and bottom illumination
Brightfield, low NA brightfield and darkfield
|
| Display | Smartphone, tablet or computer. No WiFi infrastructure or router is required. |
| Image sharing |
Images and videos are stored on the display device for easy sharing.
Images can be viewed remotely in Google Photos or any image sharing software.
Time-Lapse images can be recorded on Android devices
|
| ioLight App |
Free for download from the Apple® or Google Play® app store
Built-in web server available from any computer with Chrome and other browsers
|
| Image format |
5MP (2592 x 1944 pixels); colour JPG.
BMP and PNG available on the web browser
|
| Video format | MPEG-4; colour; up to 1296 x 972; 10 fps |
| Time-Lapse | App for Android device enables Time-Lapse image sequences |

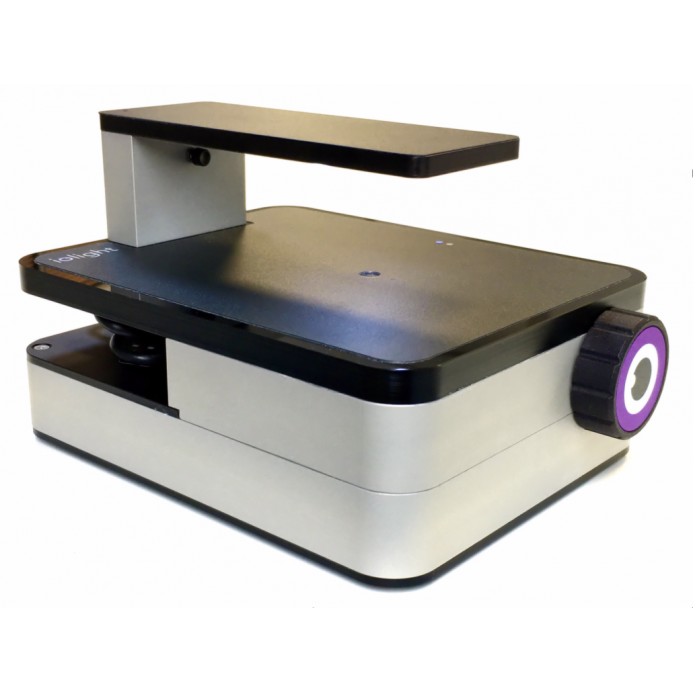

| Dimensions | 190 x 140 x 110mm |
| Weight | 1.4kg |
| Power supply |
Integrated Li-ion rechargeable battery with USB charger (supplied)

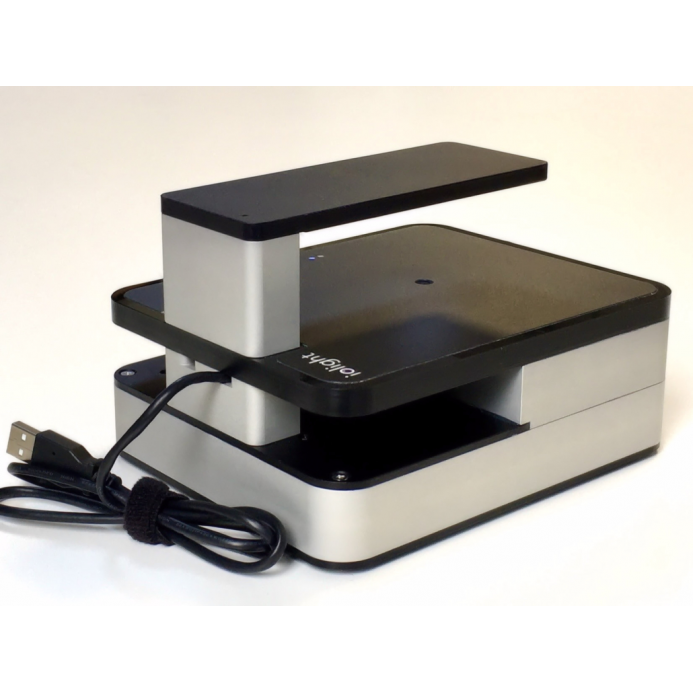

The power cable is sealed into the housing to prevent the atmosphere from entering the microscope and can be extended if required.
|
Requirements
|
Either a tablet or phone running iOS 8.1 or higher or Android® 4.4 or higher, or a computer with WiFi and Google Chrome (or another web browser)
We recommend newer, faster devices. Older low-performance devices may run the app, but this is not guaranteed
|
What’s in the box?
| Your ioLight Magnificent Mobile Microscope |
| USB charger, international model |
| Users’ guide and certificate of conformity |
